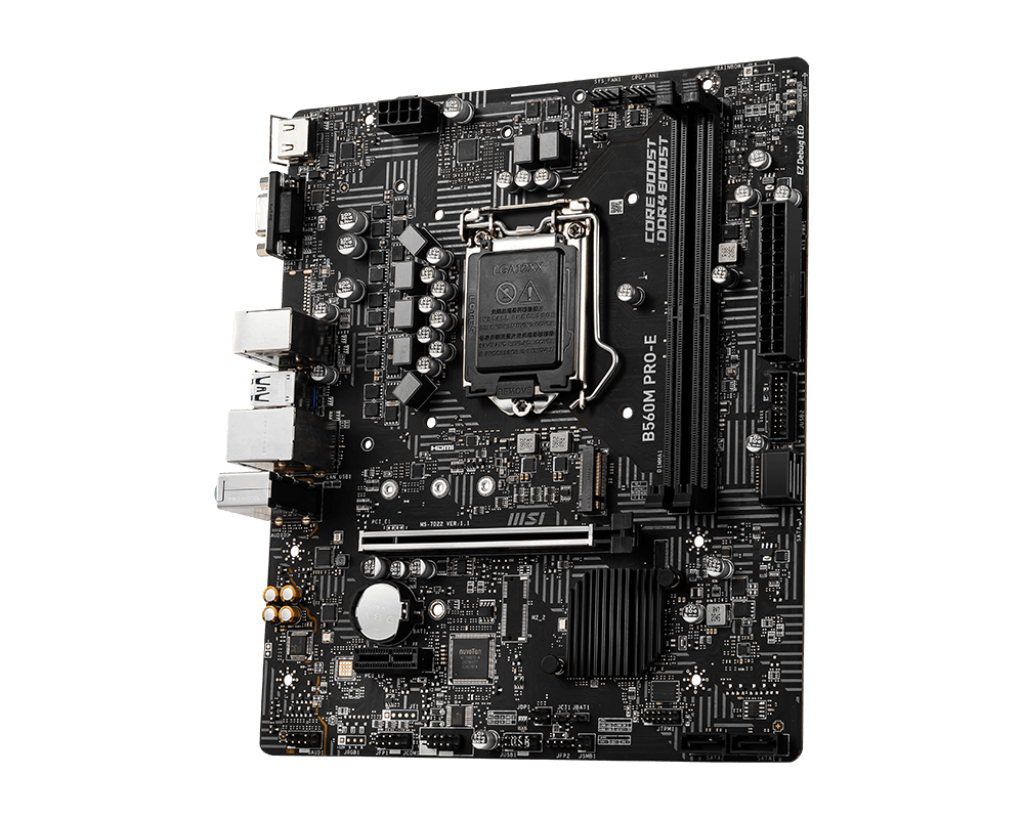

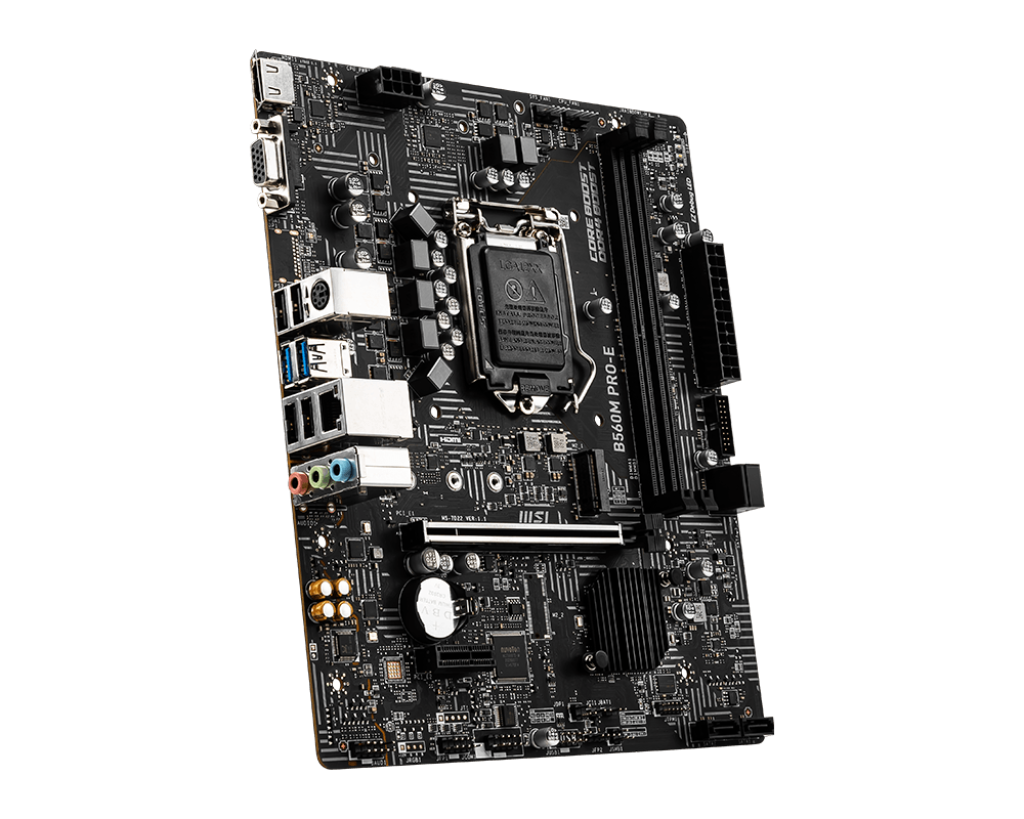

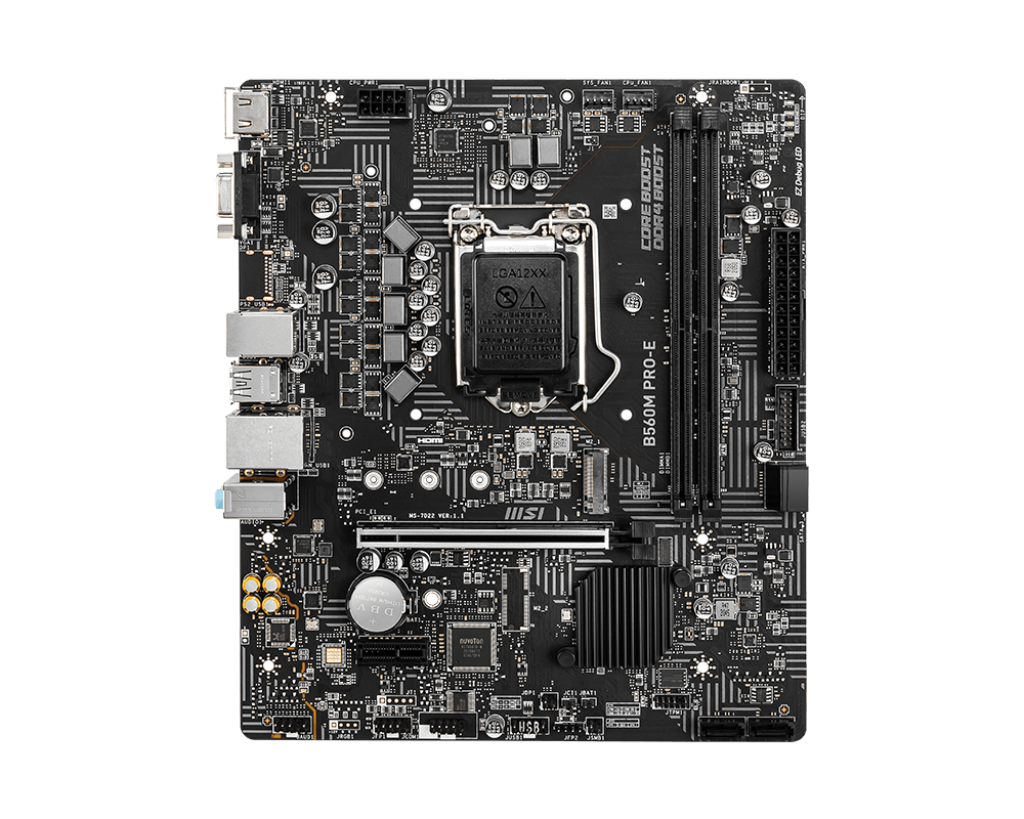

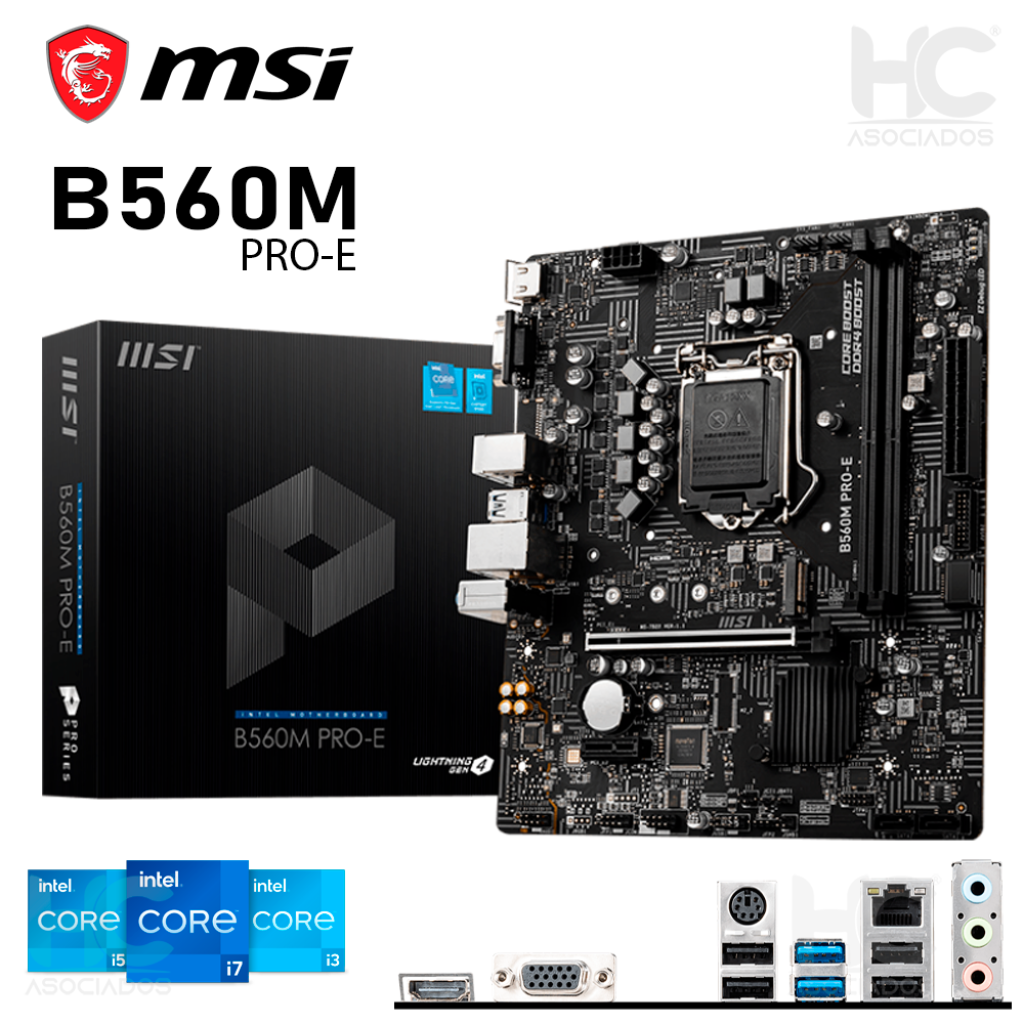

PLACA MADRE MSI B560M PRO-E / INTEL LGA 1200 / 2 DDR4 HASTA 64GB BUSS 5200 / 10MA-11VA GEN (B560M PRO-E)

Fuera de Stock

La serie PRO ayuda a los usuarios a trabajar de manera más inteligente ofreciendo una experiencia eficiente y productiva. Con una funcionalidad estable y un montaje de alta calidad, las placas base de la serie PRO no sólo proporcionan flujos de trabajo profesionales optimizados, sino también un número menor de errores y una mayor longevidad.

S/ 329.00 *Sin recargo adicional por pago en Efectivo o Transferencia.

S/ 345.45 *Con recargo de 5% adicional por pago con tarjeta crédito/débito.

Incluido IGV 18%

COTIZAR POR WHATSAPP
Metodos de Pago Metodos de Pago

CPU

Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core ™ Processors, Pentium® Gold and Celeron® Processors1

Processor socket LGA1200

  1. Please go to intel.com for compatibility information.

CHIPSET

Intel® B560 chipset

MEMORY

  • 2x DDR4 memory slots, support up to 64GB1
  • Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
  • Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
  • Max overclocking frequency:
    • 1DPC 1R Max speed up to 4800 MHz
    • 1DPC 2R Max speed up to 4600+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
  1. Please refer to www.msi.com for more information on compatible memory

See supported memory

EXPANSION SLOT

  • 1x PCIe x16 slot (From CPU)
    • Support up to PCIe 4.0 for 11th Gen Intel® CPU
    • Support up to PCIe 3.0 for 10th Gen Intel® CPU
  • 1x PCIe 3.0 x1 slot (From PCH)

ONBOARD GRAPHICS

  • 1x HDMI™ 2.0b with HDR port, supports a maximum resolution of 4K 60Hz12
  • 1x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz1
  1. Available only on processors featuring integrated graphics.
  2. Graphics specifications may vary depending on the CPU installed.

AUDIO

Realtek® ALC897 Codec
  • 7.1-Channel High Definition Audio

LAN

1x Intel® I219V 1Gbps LAN controller

STORAGE

Intel® B560 Chipset

  • 4x SATA 6Gb/s ports (From B560 Chipset)
  • 1x M.2 slot (Key M)
    • M2_1 slot (From B560 Chipset)1
      • Supports up to PCIe 3.0 x4
      • Supports 2242/ 2260/ 2280 storage devices
  1. SATA4 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.

USB

Intel® B560 Chipset

  • 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector)
  • 6x USB 2.0 ports (4 Type-A ports on the back panel,2 ports available through the internal USB 2.0 connectors)

FORM FACTOR

  • Miro-ATX Form Factor
  • 9.29 in. x 7.95 in. (23.6 cm x 20.2 cm)

BIOS FEATURES

  • 1x 256 Mb flash
  • UEFI AMI BIOS
  • ACPI 6.2, SMBIOS 3.0
  • Multi-language

INTERNAL CONNECTORS

  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 4x SATA 6Gb/s connectors
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin system fan connector
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Serial port connector
  • 1x Chassis Intrusion connector
  • 1x Clear CMOS jumper
  • 1x TPM module connector

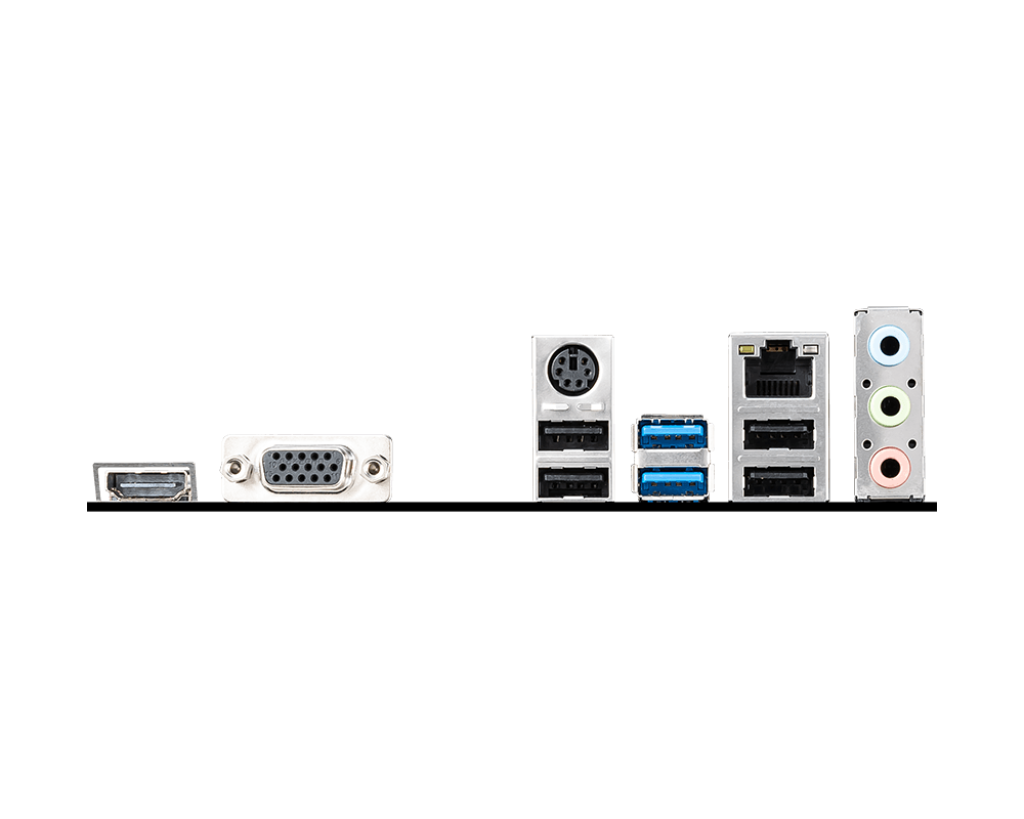

BACK PANEL CONNECTORS

  1. HDMI™
  2. VGA
  3. Mouse / Keyboard
  4. LAN port
  5. Audio connector
  6. USB 2.0
  7. USB 3.2 Gen 1 5Gbps Type-A
  8. USB 2.0
MSI Z490-A PRO back panel ports

BOX CONTENT

Intel, the Intel Logo, Intel Inside, Intel Core, and Core Inside are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries.
Los términos HDMI™, HDMI™ High-Definition Multimedia Interface (Interfaz multimedia de alta definición), HDMI™ Trade Dress (diseño e imagen comercial HDMI™) y los logotipos HDMI™ son marcas comerciales o marcas registradas de HDMI™ Licensing Administrator, Inc.
MSI, MSI gaming, dragon, and dragon shield names and logos, as well as any other MSI service or product names or logos displayed on the MSI website, are registered trademarks or trademarks of MSI. The names and logos of third party products and companies shown on our website and used in the materials are the property of their respective owners and may also be trademarks. MSI trademarks and copyrighted materials may be used only with written permission from MSI. Any rights not expressly granted herein are reserved.
1. Las especificaciones pueden diferir de unas zonas a otras y nos reservamos el derecho a modificarlas sin previo aviso. Por favor, compruebe las especificaciones con s2. El color del producto puede verse afectado por la fotografía y el ajuste del monitor, que puede ser diferente del producto real.
